Kit Platinium

The new platinium plus kit    offers a continuous output of 350 watts and a maximum of 612. It is available in sizes 26, 27.5 and 28 inches and two speeds to choose from (25km / h or 33 km / h). It has a 17 amp computerized controller (to choose between integrated or external option) and a multitude of batteries so you can choose the one that best suits your needs.

LCD PLUS Platinium KIT

289,00 €tax incl.

- +

Motor:
Battery type (possiton):
Battery type (capacity):
Controllers:
  • /img/co/179.jpg
    +30,00 €
cableado motores:
E-bus extender
Alojamiento controlador:
  • /img/co/92.jpg
    Controller saddle bag (1501018)
  • /img/co/93.jpg
    Controller frame bag (2201104) +10,00 €
  • /img/co/94.jpg
    Controller box small (2201102) +10,00 €
  • /img/co/95.jpg
    Controller box medium (220111) +15,00 €
  • /img/co/96.jpg
    Carrier for 26-28" (2201119)
  • /img/co/110.jpg
    Carrier for 16 to 20" (22011219) +20,00 €
Display type:
  • /img/co/57.jpg
    LCD5 Display (2201058)
  • /img/co/216.jpg
    LCD5 XS Display (2201082)
  • /img/co/58.jpg
    LCD5 plus Display (2201095) +30,00 €
  • /img/co/178.jpg
    LCDX Color display (2201083) +50,00 €
PAS type:
  • /img/co/98.jpg
    Standard 85 mm. square crank PAS (2201057)
  • /img/co/97.jpg
    Standard 65 mm. square crank PAS (2201099)
  • /img/co/135.jpg
    85 mm. square crank PAS 80 cm. cable (2201050)
  • /img/co/100.jpg
    SOLD OUT V12 PAS sensor for square crank (2201023) SOLD OUT +15,00 €
  • /img/co/99.jpg
    SOLD OUT Easy Split PAS sensor 75 mm. (2201086) SOLD OUT +15,00 €
  • /img/co/217.jpg
    Hollotech 10 magnet for 26 theeh chain wheel PAS (2201081) +15,00 €
Cable pas:
  • /img/co/176.jpg
    PAS cable extender 80 cm.(2201153)
Brake system (optional):
  • /img/co/214.jpg
  • /img/co/102.jpg
    +10,00 €
  • /img/co/103.jpg
    +15,00 €
  • /img/co/104.jpg
    +15,00 €
Throttle (optional):
  • /img/co/213.jpg
  • /img/co/105.jpg
    +10,00 €
  • /img/co/106.jpg
    +10,00 €
  • /img/co/107.jpg
    +18,00 €
  • /img/co/108.jpg
    +18,00 €
  • /img/co/109.jpg
    +18,00 €
e-bus cable 1:!

You have chosen the e-bus cable 1-1. This cable has no throttle or brake output. If you are going to choose accelerator and / or brakes, choose the e-bus 1-4 cable in section 3.- Controller and housing

-
Product
Weight:: Kg

More info

The new motor kit platinium  plus now offers a possibility never seen before. A motor with 250 nominal watts (350 watts continuous), with measurements in 26, 27.5 and 28 inches and two speeds to choose from (25km / h or 33 km / h), a 17 amp computerized controller (to choose between the integrated option or external) and a multitude of batteries for you to choose the one that best suits your needs make the platinium plus the ideal kit to enjoy an electric bike without giving up on continuing to use the usual bicycle.

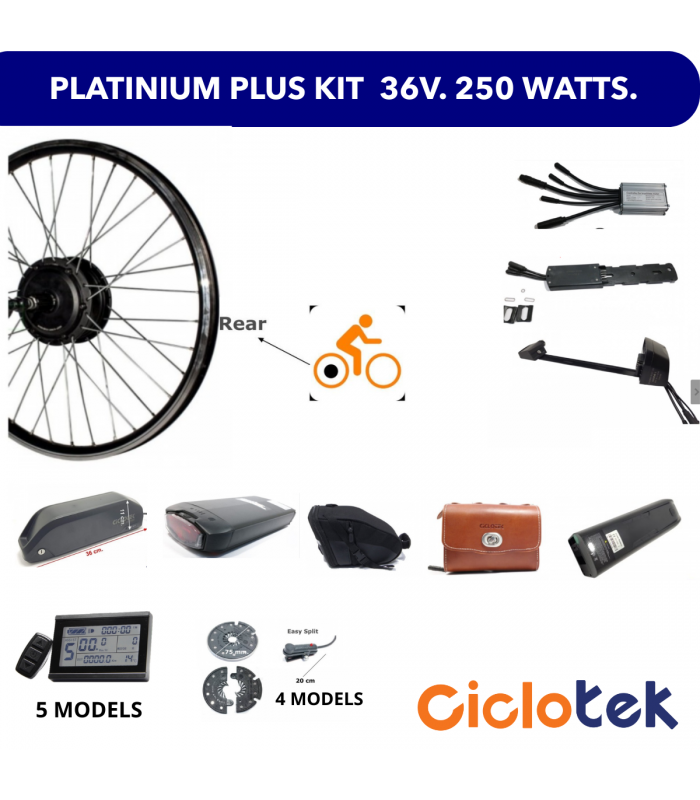

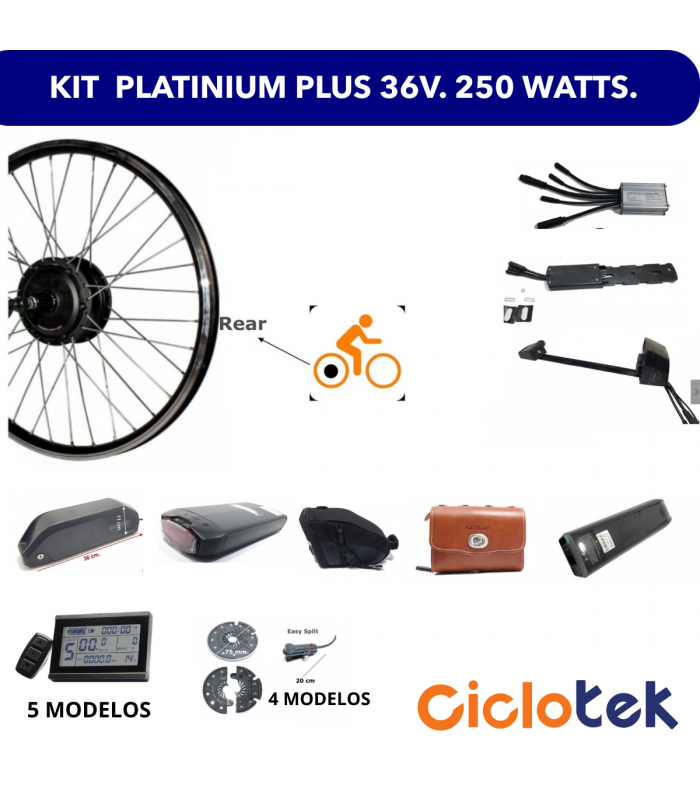

The platinium plus kit consists of a rear motor with output for cassette sprockets up to 10 speeds (sprockets not included), a controller (to choose between external or integrated), a screen with five levels of assistance (see models), sensor pedal, battery and charger and, as optional elements, accelerator and brake sensor. It also includes the necessary wiring for the installation and other elements, such as boxes for the controller if necessary, the battery charger, etc. Mounting tools are not included.

Installation and useR manual

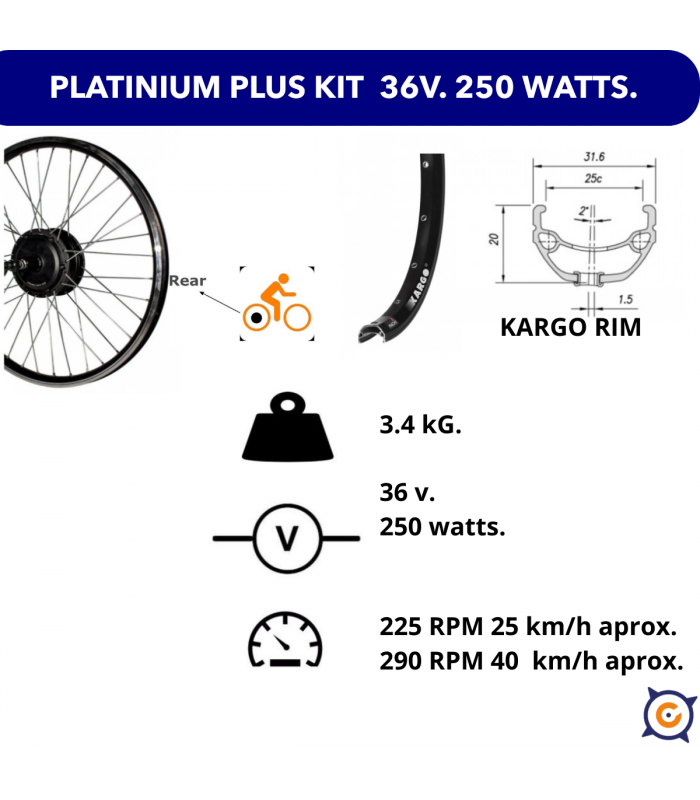

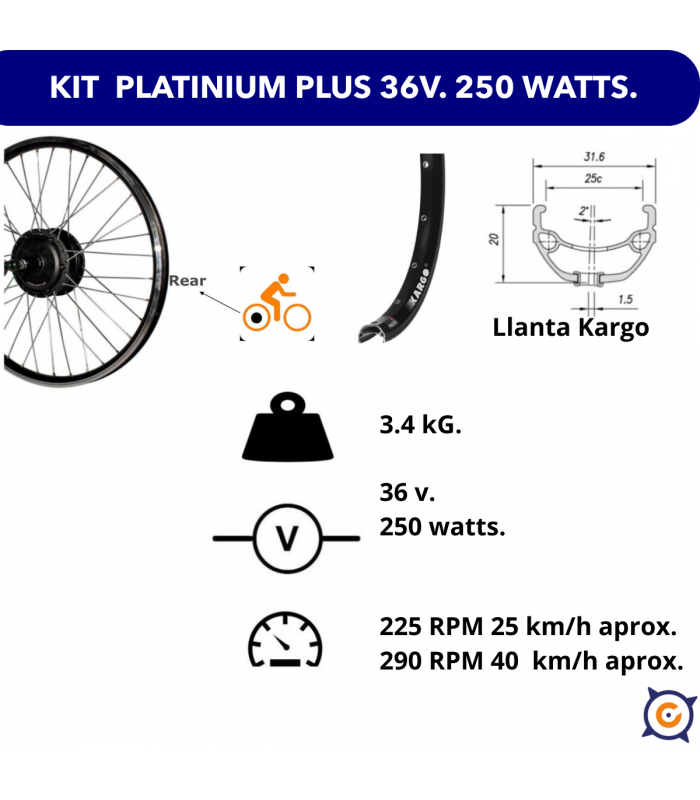

Motor

With its 250 watt. Rated (350 watt. wattage), our famous Platinium plus motor has the perfect balance of weight and performance. In combination with the 17-amp LCD5 controller, it supplies up to 612 watts of peak power.

The CicloTEK Platinium motor offers no resistance to pedaling when it is not active. This way, you can ride your bike without starting the engine if you want. When connected, its operation is extremely smooth and quiet.

Double wall rim and black color; reinforced spokes. Disc brake compatible


Available in the following sizes (select from dropdown menu)

  • Rear 135 mm. (26, 27.5 28 ”): for cassette sprockets up to 10 speed. With possibility for disc brake

Available in 2  different maximum speeds , depending on rim measurements. (Option selectable)

  • 25 km / h: Standard configuration. Balance between speed and climbing capacity.
  • 33 km / h: Suitable for high speed routes. It is not appropriate to face climbs without pedaling aid.

* Speeds at 36v. With the battery fully charged (42 v.) These maximum speeds are higher.

DATA SHEET
  • Technology: Brushless geared.
  • Nominal voltage: 36v.
  • Torque: 32nm
  • Rpm: According to radio
  • Nominal power: 250 watt.
  • Waterproof connector for easy replacement
  • Weight: 3.4 Kg.
  • Dimensions

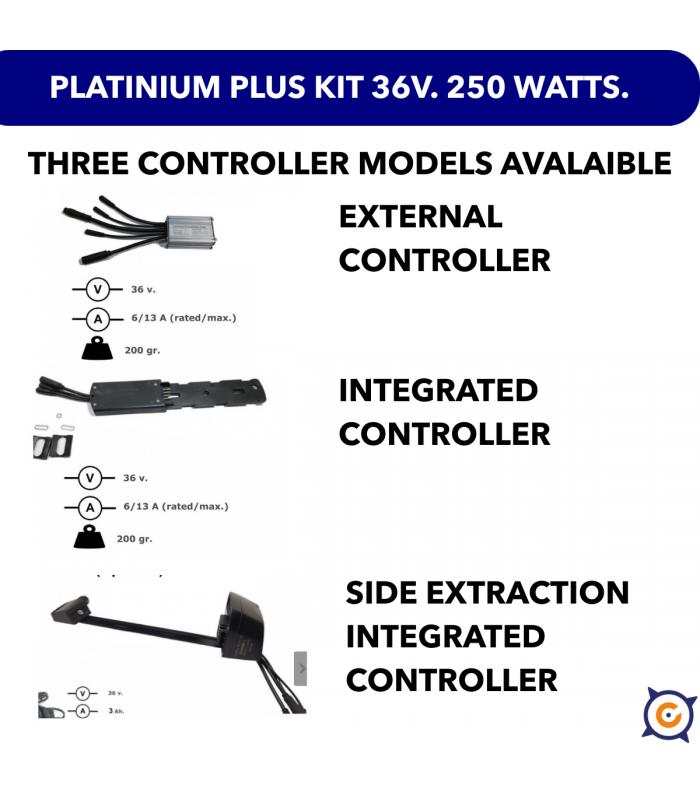

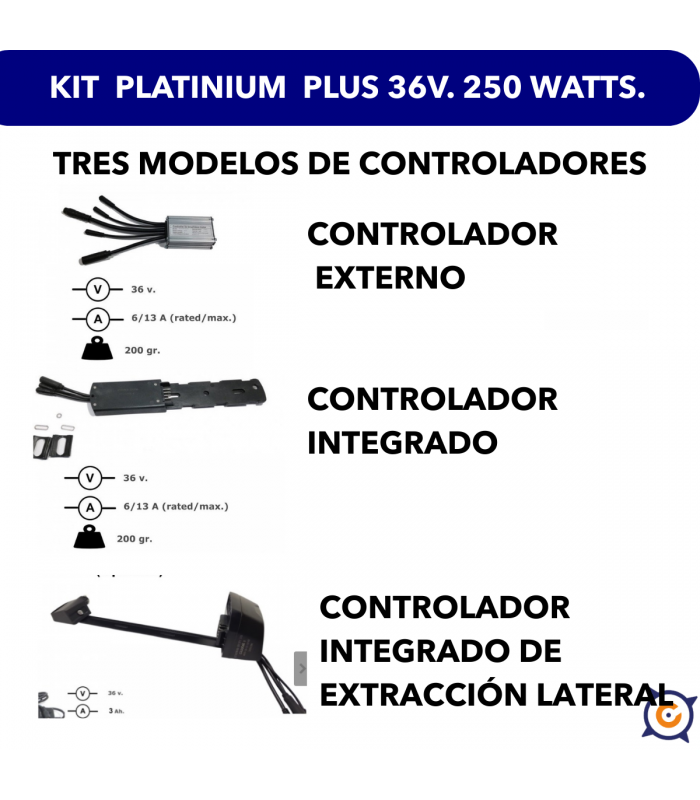

Controller

The controller is the brain of the system. It receives the instructions on the screen and tells the kit how to operate. Platinium plus and RACE motors mount a 17 amp driver. and can have a version integrated in the battery holder (only in combination with the FT model batteries).

Its programming is specially optimized so that pedaling assistance is natural, but at the same time effective. The exits are smooth and progressive, but the forceful acceleration. Next to the controller you can choose a bag or box to house it (in case it is an external controller). All our controllers have waterproof connections and light output. It is an output at 36, volts and 0.5 amps, valid only to work in conjunction with the Cyclotek light pack. (no support or guarantee will be given on the operation of the light output with other brands)

Clicking on the image you will see each controller (opens in a new tab)

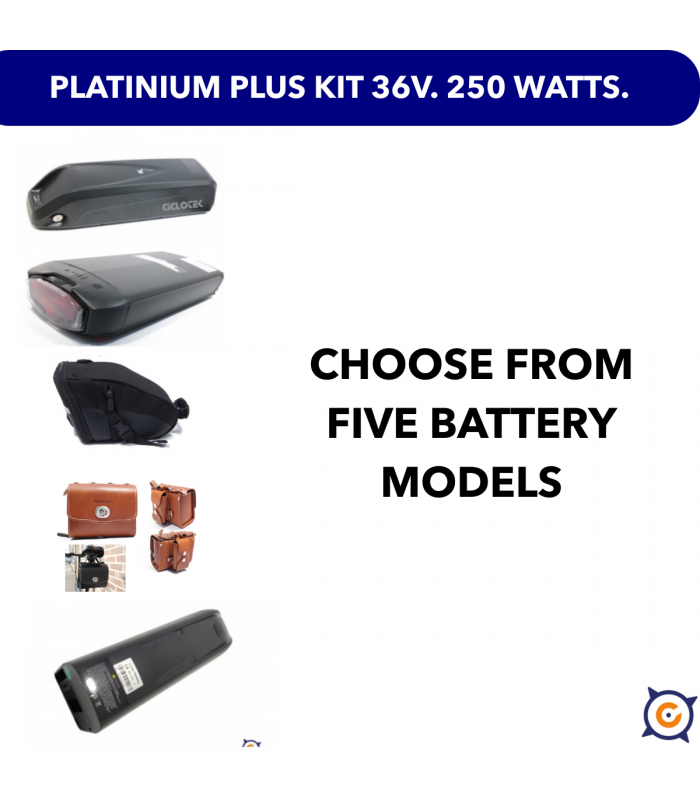

Battery

At CicloTEK we like to adapt to you, that's why, we have a wide range of batteries so you can find the one that best fits your bicycle and with different capacities, so that you find the most suitable for the use you are going to make of your new vehicle electric:

BATTERY FT 48V. 11Ah.

FT batteries are intended to be housed in the bottle cage hole. Its aesthetic result is excellent, ideal on mountain bikes or in combination with integrated controllers (HIC).


CK 48V BATTERY. 11Ah.
Model CK batteries are installed in a special carrier that is included with the kit. It is necessary that the bicycle has the necessary screws to install a carrier.

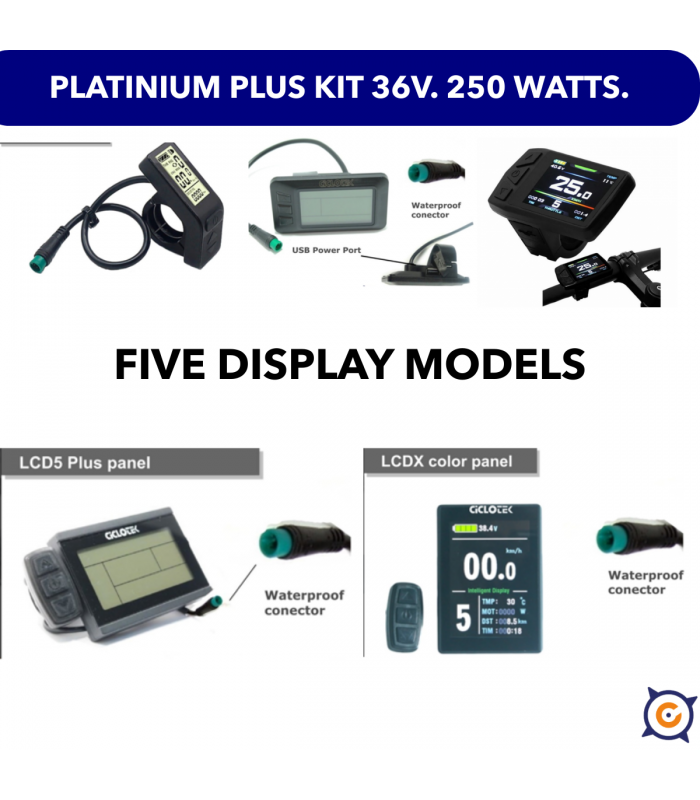

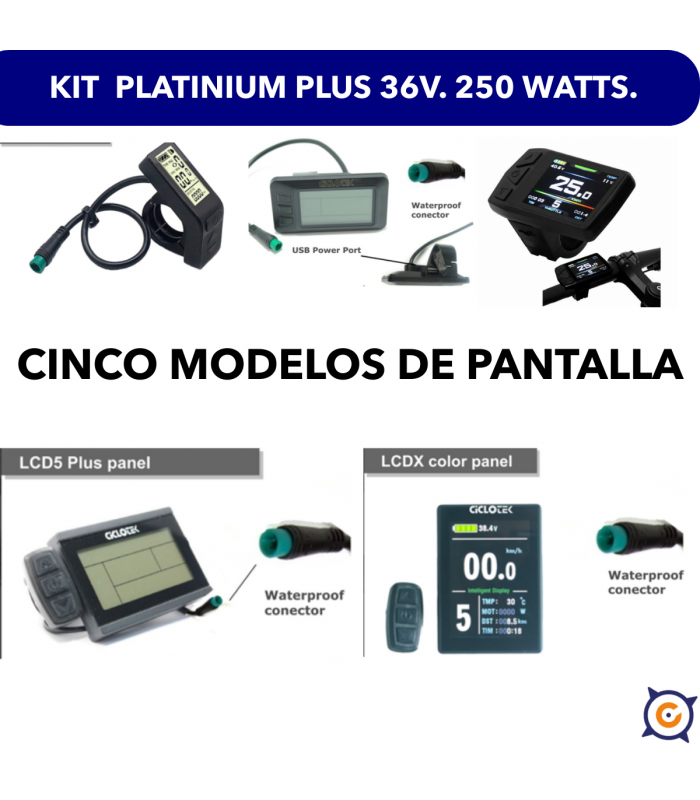

Display

In the platinium plus kit you can choose between four screen models, from the simplest to the most advanced color screen, through the traditional LCD5 screen.

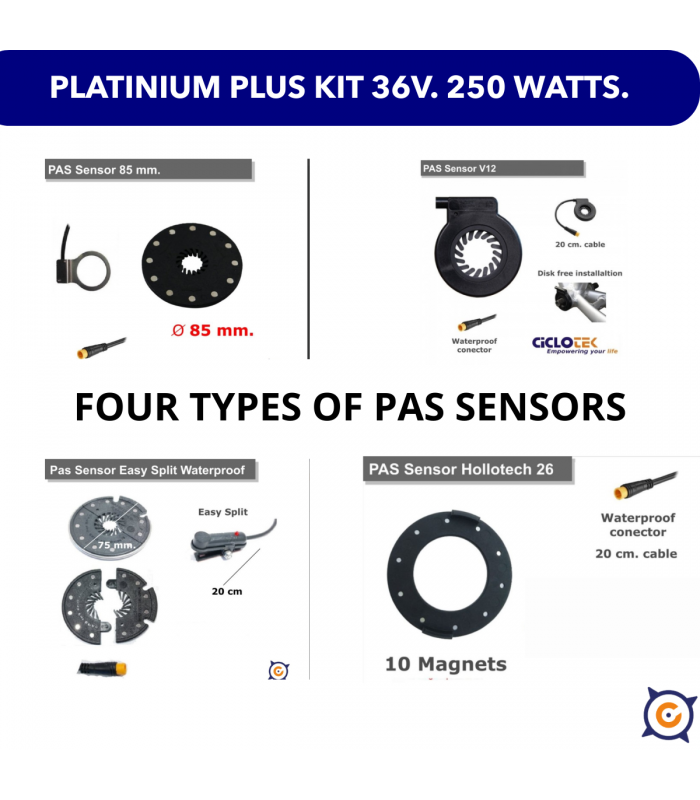

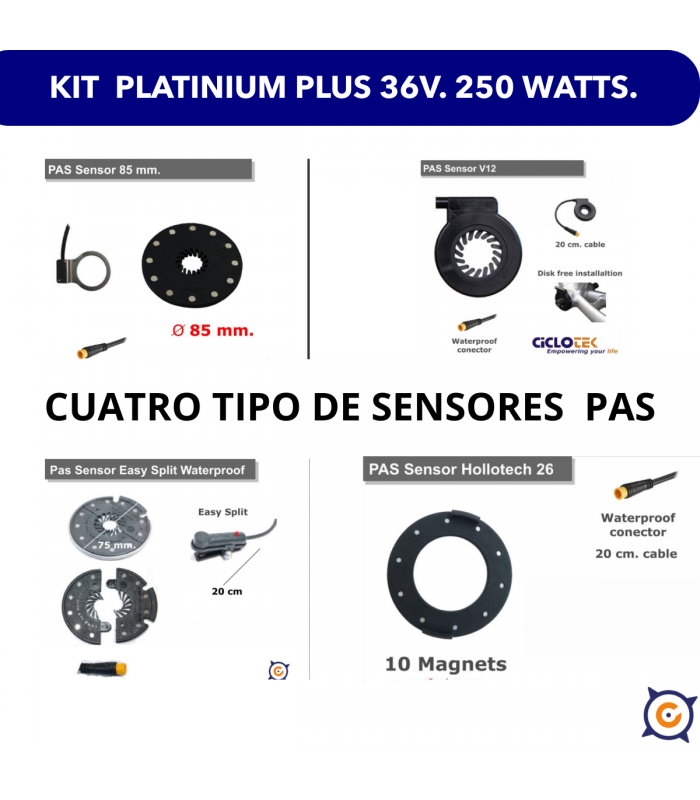

PAS Sensor

The pas sensor is the element that detects pedaling and makes the kit work. With the different pedaling sensors we adapt to the bottom bracket that your bicycle has. We have pedaling sensors for spindle shafts and for hollotech, hollow shafts, presffit or similar. Due to the number of existing bottom bracket versions some adaptation may have to be made in the country.

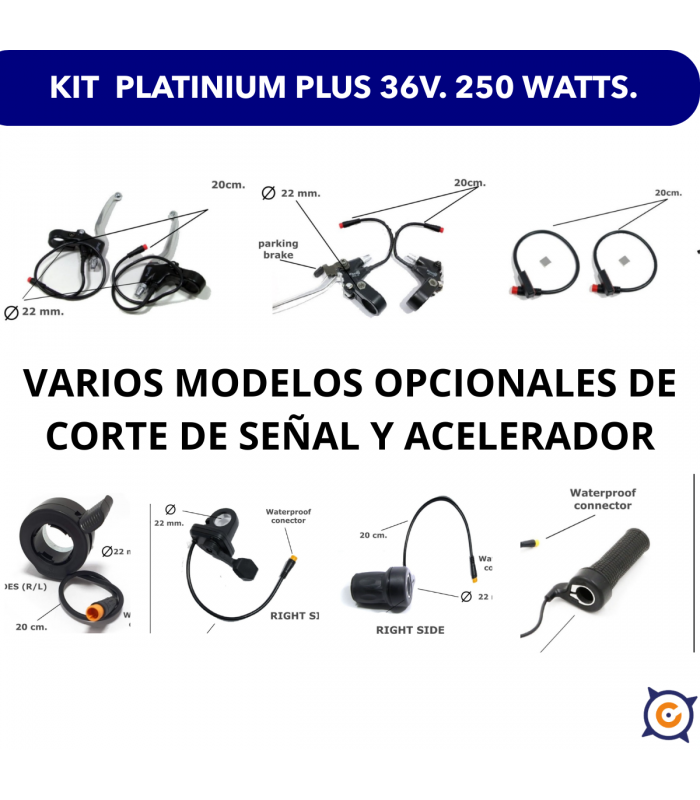

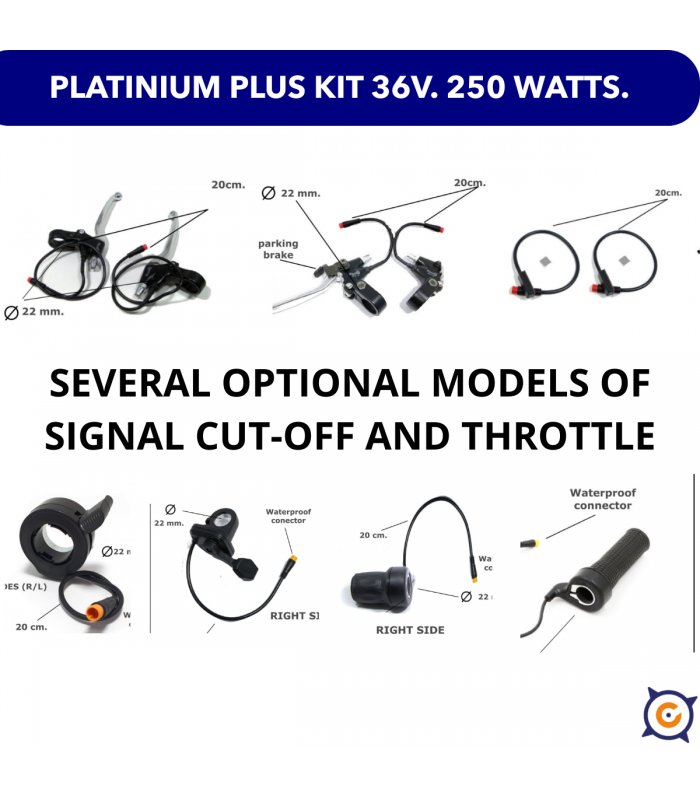

e-Brakes

Brake cut-off systems cut motor current while braking. They are an additional security element to the kit. Highly recommended in cases of technical use of the bicycle or in urban use that allows us to stop the engine immediately. In addition, they protect the motor in the event that it is acting and being braked at the same time.


Throttle

Allows you to use the motor without pedaling. Its optional installation and use is not allowed on public roads. We have several models of throttle to suit the handlebar and customer's claims:
