PRICE WITHOUT BATTERY. ENTER THE PRODUCT TO SEE OPTIONS. Our popular platinium kit now offers possibilities never seen before. A motor with 250 nominal watts with practically all the measures available on the market, a computerized controller (to choose between integrated or external options) and a multitude of batteries so that you can choose the one that best suits your needs.

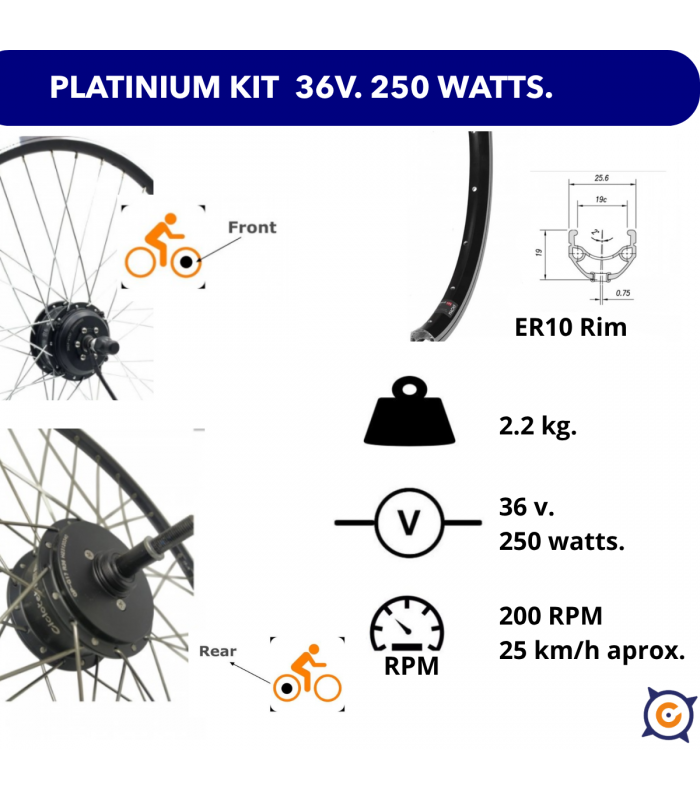

With its 250 watt. nominal (350 watt. cotinuos), our famous Platinium engine has the perfect balance between weight and performance. In combination with the LCD5 controller it supplies up to 612 watts of maximum power.
The CicloTEK Platinium engine offers no resistance to pedaling when it is not active. Thus, You can use your bike without starting the engine if you wish. When connected, its operation is extremely smooth and quiet.
Double wall rim and black color; reinforced radios. It is compatible with disc brakes (except mod. 83 mm.)
Available in the following sizes (select from drop-down menu)
Front 83 mm. (16,
Brompton and 20 ”): Suitable for folding bicycles. No possibility to install disc brake
Front 100 mm (16, 20, 24, 26, 28 ”): The most popular solution. Simple installation. With possibility for disc brake
Rear 135 mm. Thread (20, 26, 28 ”): Rear configuration, for thread pinions. With possibility for disc brake
Available in 3 different maximum speeds, depending on tire sizes. (Selectable option)
15 km / h: High torque motor, with high climbing and traction capacity. Very suitable for electric tricycles and cargo vehicles. Option only available for 20 "engines
25 km / h: Standard configuration.
Balance between speed and climbing capacity.
33 km / h: Suitable for high speed routes. It is not appropriate to face climbs without pedaling assistance.
* Speeds at 36v. With the battery fully charged (42 v.) These maximum speeds are higher.
The amperage (capacity) of the battery will determine the autonomy of your electric bicycle. In general, at more amps / hour, more autonomy. In cicloTEK we estimate that a battery of 10 Ah. It can do about 70 km. of autonomy in flat paths, with a level 2 of assistance, without wind and with a user of 75 kg.
Any variation of these conditions, as well as the condition of the bicycle, will cause the autonomy to change considerably. Choose the battery that best matches what you are looking for.

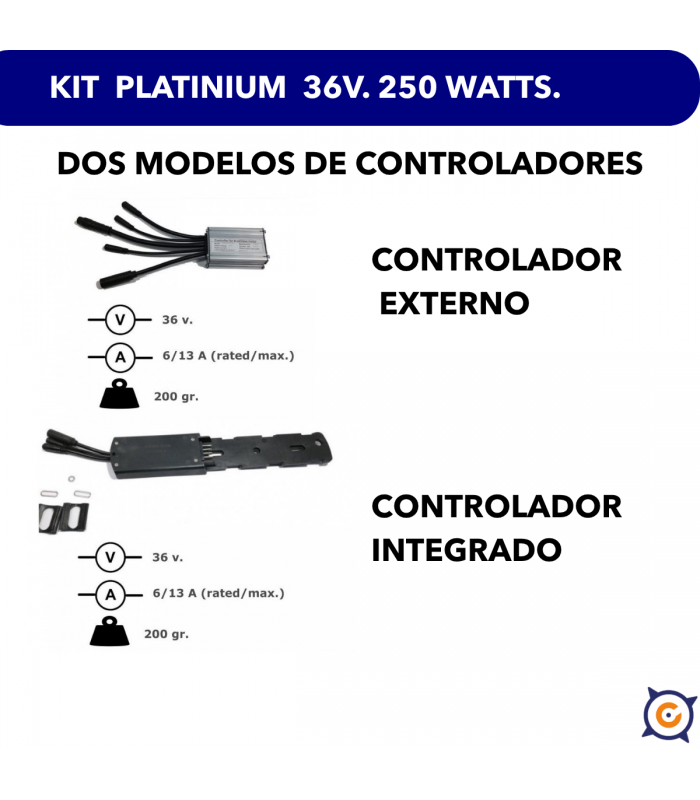

The controller is the brain of the system. He receives the instructions on the screen and tells the kit how to work. Platinium motors can mount a 15 or 17 ah controller. and they can carry an integrated version in the battery holder (only in combination with the FT model batteries).
Its programming is specially optimized so that pedaling assistance is natural, but at the same time effective. The outputs are smooth and progressive, but the acceleration blunt. Next to the controller you can choose a bag or box to accommodate it (in case it is an external controller).
All our controllers have waterproof connections and light output. It is an output at 36, volts and 0.5 amps, valid only to work in conjunction with the cicotek light pack. (there will be no support or guarantee on the operation of the light output with other brands)

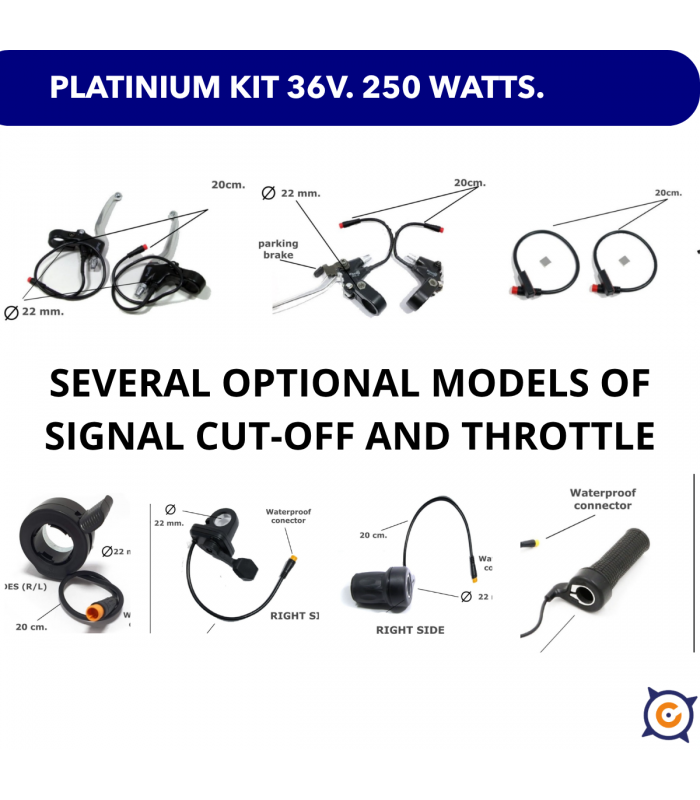

Brake cutting systems cut off motor current while braking. They are an additional security element to the kit. Extremely recommended in cases of technical use of the bicycle or in urban use that allows the engine to stop immediately. Further,
they protect the engine against the eventuality that it is acting and being braked at the same time.
You have chosen the e-bus cable 1-1. This cable has no throttle output or brakes. If you are going to choose accelerator and / or brakes, choose the e-bus cable 1-4 in section 3.- Controller and housing
Our well-known platinium kit now offers possibilities never seen before. A nominal 250-watt motor (which keeps you within the standards), with all the specific measures on the market,
a computerized controller (to choose between integrated options or coils) and a multitude of batteries to choose the one that best suits your needs make platinum the ideal kit to enjoy an electric bicycle without giving up on continuing to use the usual bicycle.

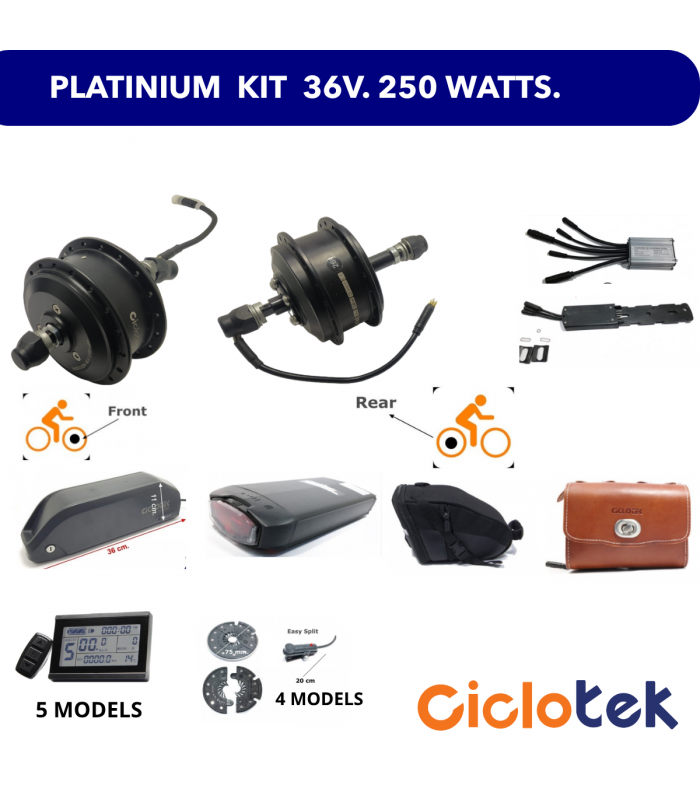

The platnium kit consists of a motor (front or rear,
depending on options), a controller (to choose between several options), a screen with five levels of assistance (see models), pedal sensor, battery and charger and, as elements optional, accelerator and brake sensor. It also includes the necessary wiring for the installation and other elements, such as boxes for the controller if necessary
, the battery charger, etc. Does not include mounting tools.
With its 250 watt. nominal, our famous Platinium engine has the perfect balance between weight and performance. In combination with the LCD5 controller it supplies up to 540 watts of maximum power.
The CicloTEK Platinium engine offers no resistance to pedaling when it is not active. This way, you can use your bike without starting the engine if you wish. When connected, its operation is extremely smooth and quiet.
Double wall rim and black color; reinforced radios. It is compatible with disc brakes (except mod. 83 mm.)
Available in the following sizes (select from drop-down menu)
Front 83 mm. (16, Brompton and 20 ”): Suitable for folding bicycles. No possibility to install disc brake
Front 100 mm (16, 20, 24, 26, 28 ”): The most popular solution. Simple installation. With possibility for disc brake
Rear 135 mm. Thread (20, 26, 28 ”): Rear configuration, for thread pinions. With possibility for disc brake
Available in 3 different maximum speeds, depending on tire sizes. (Selectable option)
15 km / h: High torque motor, with high climbing and traction capacity. Very suitable for electric tricycles and cargo vehicles. Option only available for 20 "engines
25 km / h: Standard configuration. Balance between speed and climbing capacity.
33 km / h: Suitable for high speed routes. It is not appropriate to face climbs without pedaling assistance.
* Speeds at 36v. With the battery fully charged (42 v.) These maximum speeds are higher.
FEATURES | |
|
|

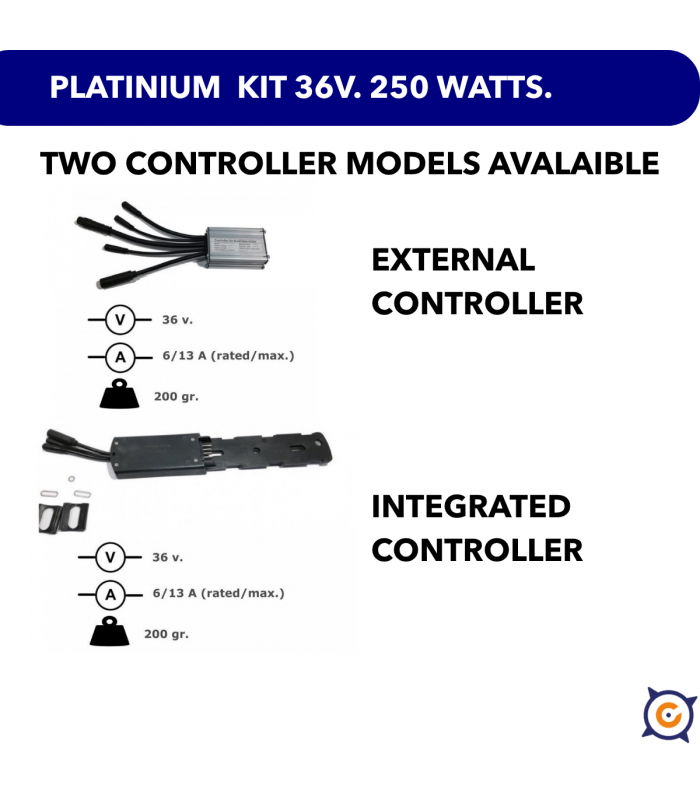

The controller is the brain of the system. It receives the instructions on the screen and tells the kit how to operate. Platinium motors mount a 15 amp controller. and can have a version integrated in the battery holder (only in combination with the FT model batteries).
Its programming is specially optimized so that pedaling assistance is natural, but at the same time effective. The exits are smooth and progressive, but the forceful acceleration. Next to the controller you can choose a bag or box to house it (in case it is an external controller).
All our controllers have waterproof connections and light output. It is an output at 36, volts and 0.5 amps, valid only to work in conjunction with the Cyclotek light pack. (no support or guarantee will be given on the operation of the light output with other brands)
Clicking on the image you will see each controller (opens in a new tab)

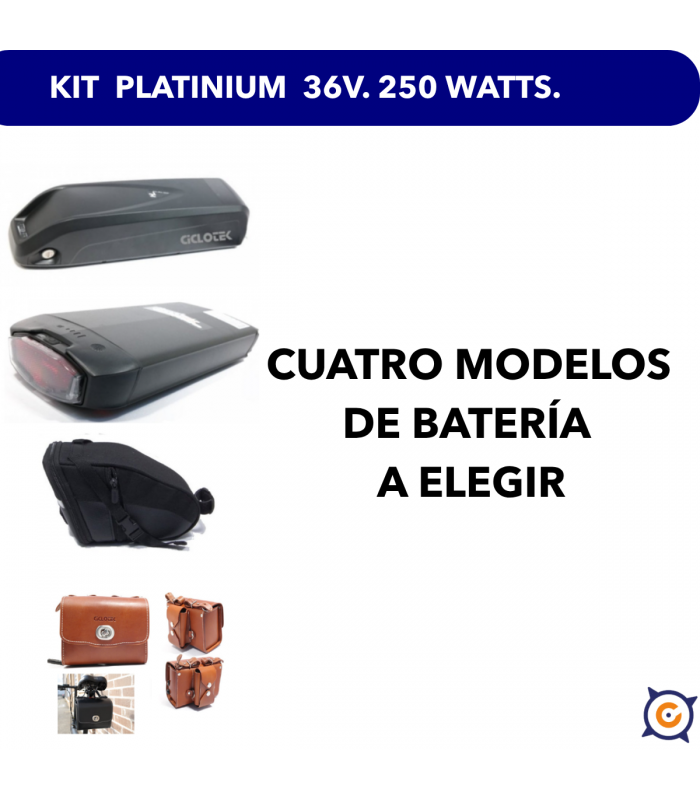

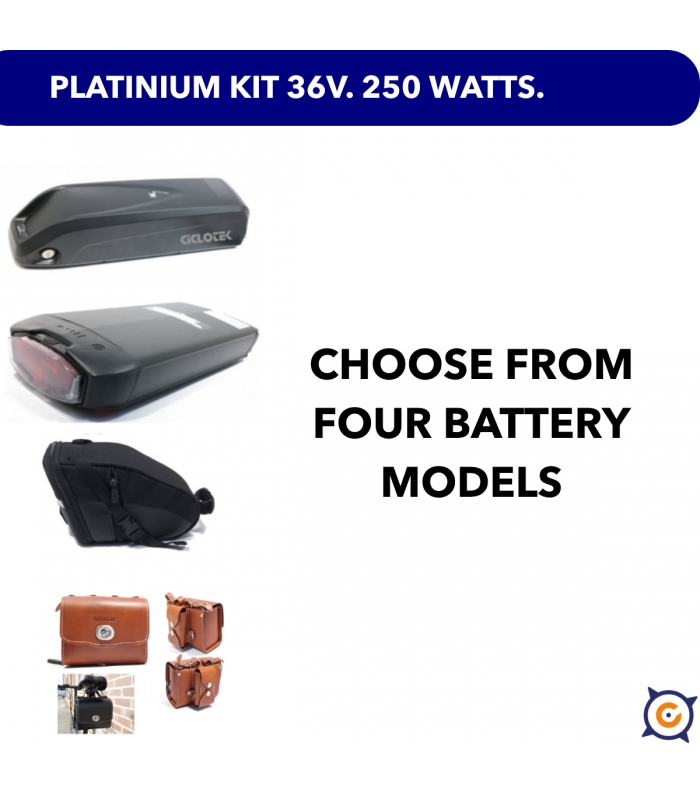

At CicloTEK we like to adapt to you, that's why, we have a wide range of batteries so you can find the one that best fits your bicycle and with different capacities, so that you find the most suitable for the use you are going to make of your new vehicle electric:
FT BATTERIES |
|
![]() |
FT batteries are intended to be housed in the bottle cage hole. Its aesthetic result is excellent, ideal on mountain bikes or in combination with integrated controllers (HIC). We have FT batteries in the following capacities for the platinium kit:
|
CK BATTERIES |
|
![]() |
Model CK batteries are installed in a special carrier that is included with the kit. It is necessary that the bicycle has the necessary screws to install a carrier. The controller is housed in a box for this purpose (included). The battery features a battery powered tail light. Available in two versions
|
BS BATTERIES |
|
![]() |
BS batteries are housed in a tool bag, which is secured with straps behind the saddle. It is a battery especially suitable for double suspension bicycles, in which it is not possible, due to its geometry and configuration, to fit other types of batteries. The available versions are:
|
VINTAGE BATTERIES |
|
![]() |
|

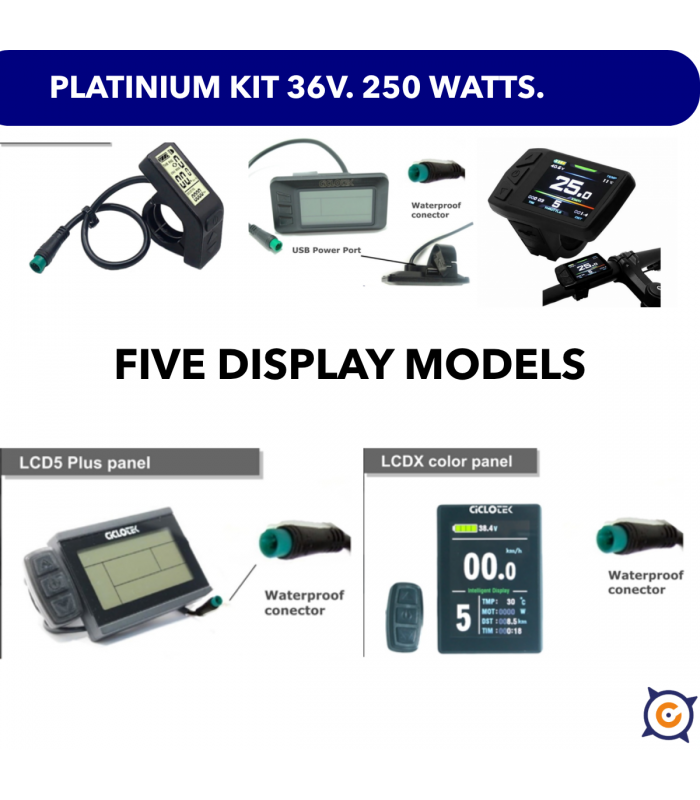

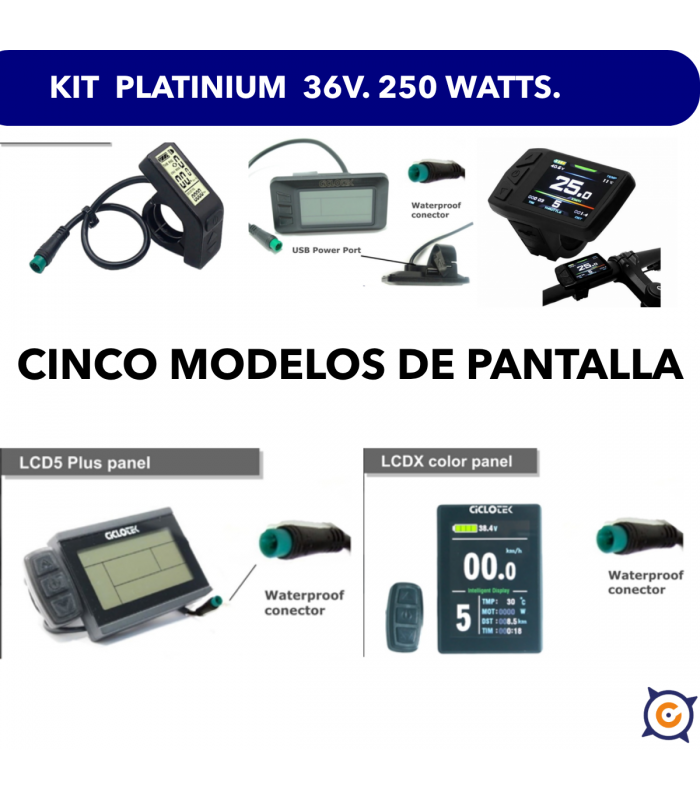

In the platinium kit you can choose between five display models, from the analog display, with three levels of assistance and the most basic functions of speed and battery level, to the most advanced color display, going through the traditional LCD5 or the mini screen, with the accelerator integrated in it.

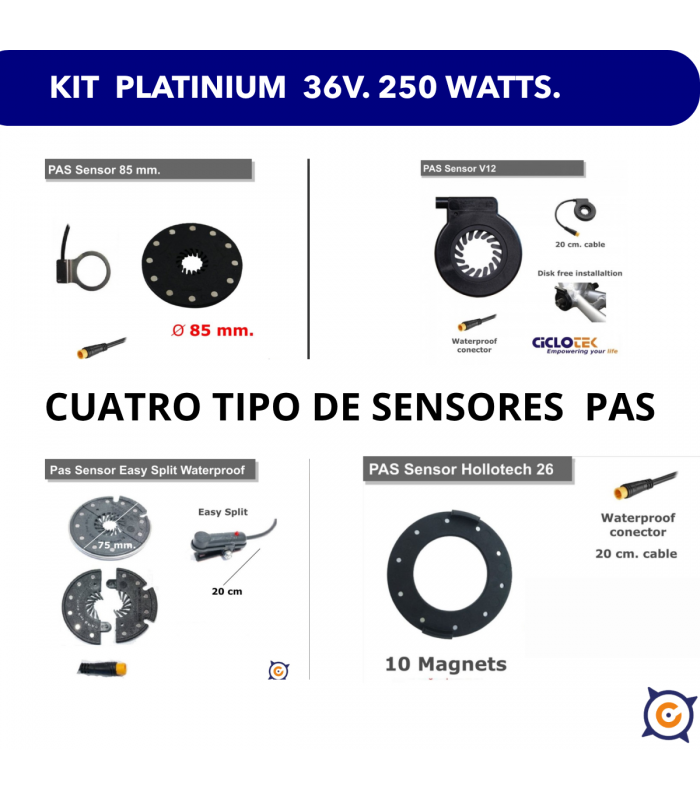

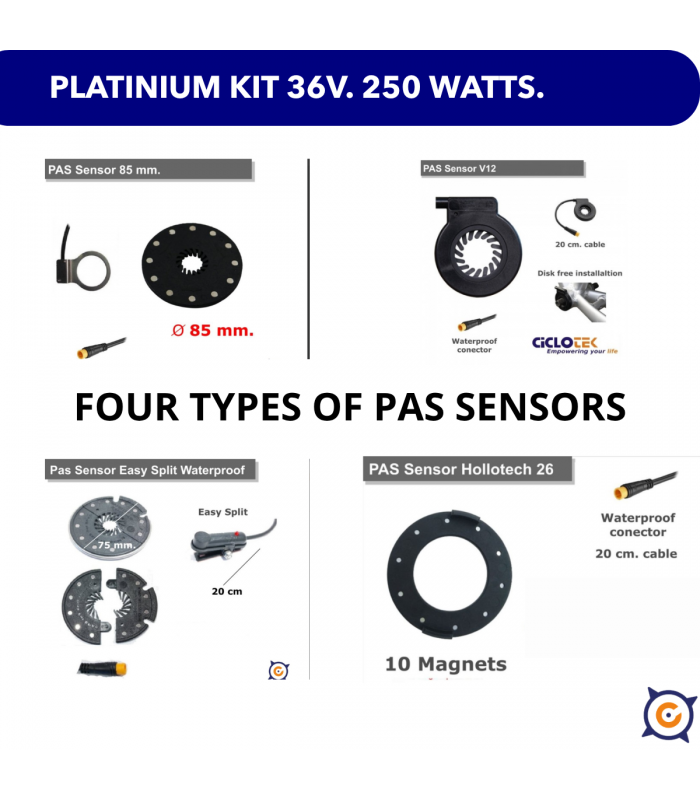

The pas sensor is the element that detects pedaling and makes the kit work. With the different pedaling sensors we adapt to the bottom bracket that your bicycle has. We have pedaling sensors for spindle shafts and for hollotech, hollow shafts, presffit or similar. Due to the number of existing bottom bracket versions some adaptation may have to be made in the country.
Brake cut-off systems cut motor current while braking. They are an additional security element to the kit. Highly recommended in cases of technical use of the bicycle or in urban use that allows us to stop the engine immediately. In addition, they protect the motor in the event that it is acting and being braked at the same time.
